Beverage Processing Plants and Machinery

Jas enterprise offers fruit pulping machine is suitable for separating residues and pulps from pome fruits and various berries. Jas enterprise undertakes design, development and production of specialized food and beverage processing equipment and automated process to the individual customer requirements. Fruit pulper with motor is used to extract pulp from fruits, vegetables and other pulpy items. During the operation, the seeds and skin get separated and discharges through a chute. It is commonly used in canning industry and ayurvedic medicine manufacturing units. This machine can also be used for pepper de-skinning and washing of spices. The machine is supplied with motor.

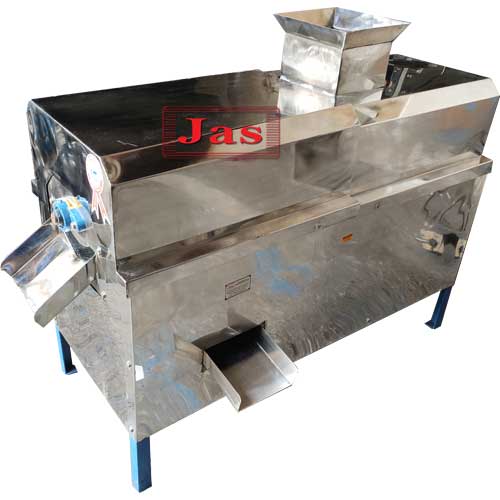

Mango pulp making machine

Description of Mango pulp making machine

Jas Enterprise manufacture, export, and supply high performing mango pulp making Machine. This pulp making Machine is designed for extracting the pulp of most fruits and vegetable such as mangoes, guava, sapodilla, berries, apples, custard apple, kiwi, litchi, peaches, apricots, pineapple, strawberry, tomatoes, bananas etc. Mounted on a heavy-duty mild steel stand, the central pulping unit of the Pulper Machine consists of a pair of brushes fixed on a stainless-steel shaft and done with stainless steel sieve. The gap between sieve and the brushes can be adjusted in the Pulper Machine to suit different types, sizes and qualities of the product to be pulped.

Operating Principles of mango pulp making machine

Jas enterprise have developed pulp making machines of various sizes for extraction of the pulp of most fruits and vegetables such as mangoes, guavas, peaches, tomatoes, bananas etc. The pulp making machine unit consists of two brushes and two beaters which give a combined beating and brushing action. These pulp making units are supplied with four beater or four brushes depending upon the fruits to be handled. The gap between the sieve and beater/brushes can be adjusted to suit different types of size and qualities of products to be pulped. The sieve is available and perforations of different sizes and is easily removable for cleaning. Food regulation screw ensures correct feeding of products for better performance. All metal contact parts are stainless steel. They are also providing structures that are fabricated using hot rolled mild steel heavy-duty sections. All parts can be easily dismantled and reassembled for the facility of inspection, proper washing, cleaning, and periodic maintenance.

Key features of mango pulp making machine

  • Unique and reliable design
    • The pulp making Machine are highly effective as well as non-stop continuous pulping process.
  • Increased production leading to faster return on the investments
  • Long-lasting stainless-steel construction
  • The pulp making machine can process about 50-3000 kilograms of fruit per 8-hour shift.
  • The pulp making machine is very compact and can be easily installed in a comparatively small space. It’s easy in operation and maintenance.
  • Requires no skilled labour to operate it, also it can be easily dismantled for cleaning, after operation, and quickly re-assembled.
  • The fruit pulper is a must for any small-scale fruit and vegetable processing unit.

Construction mango pulp making machine

The contacting parts of the pulper machine are made of stainless steel the stand is made from rigid mild steel construction. A pulp making machine is provided with a stainless-steel suitable sieve which is ideal for most of the fruits. Inside the sieve a nylon brush and a blade are provided.

Applications of mango pulp making machine

Jas pulp making Machine is ideal for pulping tomatoes, mango, guava, sapodilla, berries, apples, custard apple, kiwi, litchi, peaches, apricots, pineapple, strawberry, raspberry, strawberry, papaya, rock melon, jamun, peach, grapes, bananas, et cetera

Available model of mango pulp making machine

Model No Size of machine (Weight) HP (Kw) Production Capacity Per Hour
Tomato Mango
Jas-MPM-50 36 X 19 X 30 (70 kg) 1 HP (0.75 kW) 75-100 kg/hr 50 kg/hr
Jas-MPM-200 42 X 24 X 33 (100 kg) 1.5 HP (1.1 kW) 250-300 kg/hr 175-200 kg/hr
Jas-MPM-400 50 X 24 X 34 (130 kg) 2 HP (1.5 kW) 500-600 kg/hr 400 kg/hr
Jas-MPM-1000 55 X 24 x 40 (260 kg) 5.0 HP (3.7 kW) Three phase 1200-1500 kg/hr 800-1000 kg/hr
Jas-MPM-2000 98 X 42 X 70 (900 kg) 7.5 (5.5 kW) HP Three phase 2500-2600 kg/hr 1800-2000 kg/hr

Standard accessories of mango pulp making Machine

  • Suitable 4 pole totally enclosed fan cooled single or three phase Squirrel cage motor as per IS: 325 or 996 is supplied with pulp making Machine{(Special power can be accommodated): 110/220/380/415 Volts, 50/60 Hz, 1/3 Phase}
  • Motor pulley
  • Adjustable rail for motor mounting
  • One number screen which is fitted with machine

Extra Accessories of mango pulp making machine

  • Suitable miniature circuit breaker as per IS: 8828 with 3-meter cable and 3 pin top as per IS: 1293
  • V Belts
  • Extra screen
