Industrial Crushing grinding and pulverizing equipments


With the assistance of professional engineers, we manufacture and supply high quality wet and dry grinders. These wet and dry grinders are developed from highest quality of materials, which impart them optimal level of durability. These machines are designed as per the application requirements of our clients.
Our commercial wet and dry pulverizer are used for grinding different types of product like spices, fresh ginger, salt, garlic, sugar, fresh fruits, vegetables, beetle nuts, leaves, oil cake, cattle and poultry feeds, icing sugar, custard powder, instant food, food colours and allied food production.

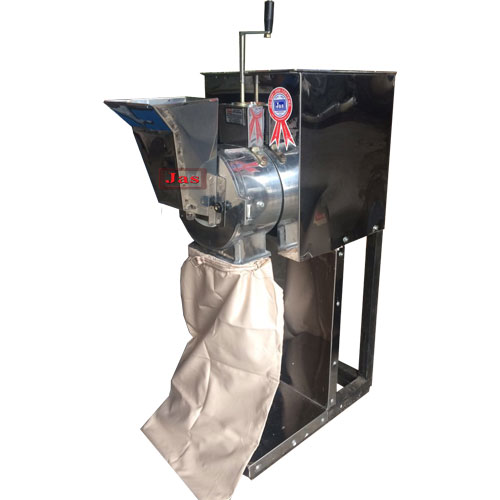

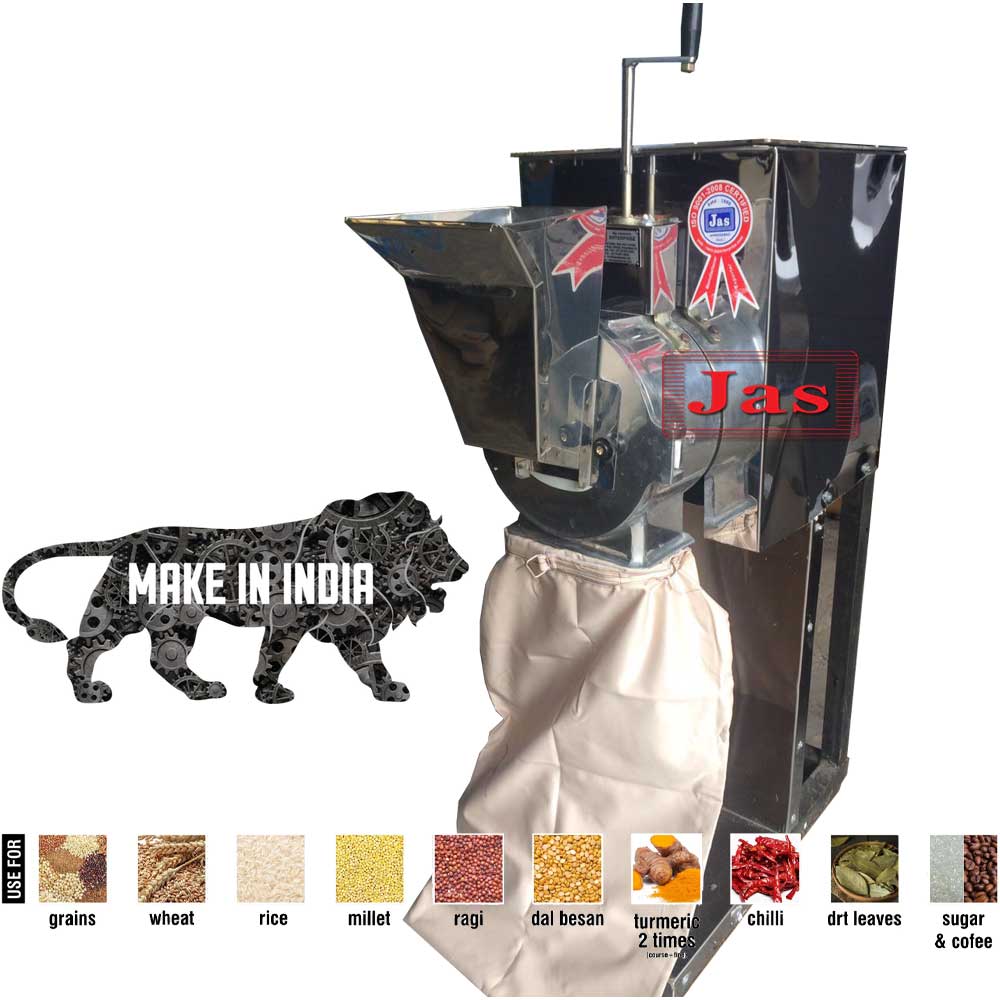

Commercial wet and dry grinders


Description of Industrial wet and dry grinders

We have for our client commercial wet and dry pulverizer that have front and back feeding system. Front feeding hopper is suitable for wet pulses, red chillies, turmeric, et cetera and back loading hopper is suitable for dry, free-flowing materials i.g. Wheat, dry pulses, thus this pulverizer is multipurpose utility pulverizer. The grinding chamber of dry and wet pulverizer is lined with serrated wear plates, which protects the body from wear and tear. The material is contacted by a series of rotating, and dynamically balance rotor. The material is ground by repeated contact with these rotors, contact with the serrated wear plates of the grinding chamber, and particle to particle contact. The material remains in the grinding chamber until it is suitably sized to pass through the perforated screen that covers the bottom half of the grinding chamber.

Operating principle of Wet and dry grinder

The flow of material from the feeding hopper is regulated by means of side handle easily to suit the load. Rotor with four cutters runs in anti-clockwise direction. The beater pass just beneath the ratchet teeth liner fitted inside the top half of the crushing chamber, leaving a gap of 3 mm between the liner teeth and the tips of the rotating beater. This cuts the material caught between the liner teeth like a sword with a scissors action at a high speed of 2880 rotations per minute. After the required size reduction, the material will pass through the screen fitted inside the lower discharge end of the grinding chamber. No sieving is required, as the appropriate size screen fitted will not allow coarser material to pass through. The air generated in the crushing chamber forces the powder to pass through the screen fitted at the bottom discharge end of the crushing chamber, into a filter attached to the delivery trough below. (When crushing wet-pulpy materials, the balloon should not be used)

Recommended perforated holes screens selection table for Wet and dry grinder

Screen NoParticular
Screen No 0Wheat fine flour, maida (Refined Wheat Flour), urad dal, pulses (dried lentils, peas or beans), etc...
Screen No 1 ( Brass screen )Rice, jowar (Sorghum) , bajra (Pearl millet), pulses (dried lentils, peas or beans), et cetera
Screen No 1Chickpea, wheat, turmeric, maize, corn, iceing sugar, Piplamool ( pepper root), et cetera
Screen No 2Corse powder of wheat, sugar
Screen No 3Corse powders, cumin, red chili, spices, rice for dhokala, idli, dosa
Screen No 4Corse powders for dhokala, idli, rava,et cetera
Screen No 5Daliya, turmeric first passs, very corse then rava, et cetera

Servicing guidelines of Wet and dry grinder

Open the cover of chamber all grinding parts cleaned with a brush in couple of minute and the pulverizer is ready for next crushing. If required, the grinding chamber can also be washed with water. Remove the cotton balloon and the screen, close the cover tightly and start the grinder. Now pour a bucket or two of water into the hopper. The grinding parts will be flushed with the water and cleaned. Continue running the machine for a few more minutes as the draft of the fresh air sucked into the grinder will dry it.

Typical application of Wet and dry grinder

The Techno wings brand dry and wet pulverizer can be used for a wide range of application e.g. Herbs and spices like read chillies, black pepper, white pepper, cinnamon, cardamom, coriander, red pepper, oregano, basil, thyme, dill seed, shell corn, gingko, ginseng, cava, black cohosh, ginger root, yucca root, cassava root, etc.

Outstanding features of Wet and dry grinder

  • Unique and reliable designthe dry and wet grinder series machines are highly effective as well as non stop continuous pulverizing process.
  • Compact size
  • Dust free operation
  • Ideal for dry and wet both grinding
  • Increased production leading to faster return on the investments
  • Low temperature rise for heat sensitive materials

Technical specifications of Wet and dry grinder

Model No.Jas-DWP-1102Jas-DWP-1104-HDJas-DWP-1103
Chamber Size in inch
in mm
Ø 8 X 4 Width
Ø200 X 100 Width
Ø 8 X 4.5 Width
Ø200 X 115 Width
Ø 8 X 8 Width
Ø 200 X 200 Width
Motor H.P.(KW)1 ( 0.75 KW)2 ( 1.5 KW)2 (1.50 KW)
Size of machine approximate56 X 32 X 77 CM 46 Kilogram68 X 33 X 96 CM 55 Kilogram62 X 32 X 77 CM 65 Kilogram

Approximate production capacity per hour of Wet and dry grinder

MaterialJas-DWP-1102Jas-DWP-1104-HDJas-DWP-1103
Wheat5 to 10 kg/hour8 to 16 kilogram/hour10 to 20 kilogram/hour
Rava (Semolina)25 to 30 kilogram/hour35 to 45 kilogram/hour50 to 60 kilogram/hour
Bangle Grams, chickpeas, grean grams20 to 22 kilogram/hour25 to 35 kilogram/hour40 to 44 kilogram/hour
Rice4 to 6 Kg8 to 12 kilogram/hour10 to 12 kilogram/hour
Milets4 to 5 kilogram/hour8 to 10 kilogram/hour8 to 10 kilogram/hour
Maize5 to 6 kilogram/hour10 to 12 kilogram/hour10 to 12 kilogram/hour
Sugar30 to 40 kilogram/hour60 to 70 kilogram/hour70 to 80 kilogram/hour
Coriander, cumin10 to 12 kilogram/hour15 to 20 kilogram/hour20 to 22 kilogram/hour
Black pepper12 kilogram/hour20 kilogram/hour24 kilogram/hour
Turmeric9 to 10 kilogram/hour18 to 20 kilogram/hour18 to 20 kilogram/hour
Red Chilies5 to 6 kilogram/hour8 to 10 kilogram/hour10 to 12 kilogram/hour
Phyllanthus emblica8 to 9 kilogram/hour14 to 16 kilogram/hour16 to 18 kilogram/hour

Standard accessories of Wet and dry grinder

  • One number filter
  • One number stainless steel vessel to collect the ground materials
  • Seven numbers of different size holes screen for getting different mesh powders.
  • Three meter suitable cable along with ampere meter and miniature circuit breaker and suitable totally enclosed fan cooled three phase or single phase sq. Cage motor {electricity (special power can be accommodated): 110/220/380/415 volts, 50/60 Hz, 1/3 phase}

Extra accessories of Wet and dry grinder

  • All contacting parts stainless steel 304 / 316 can be accommodated
